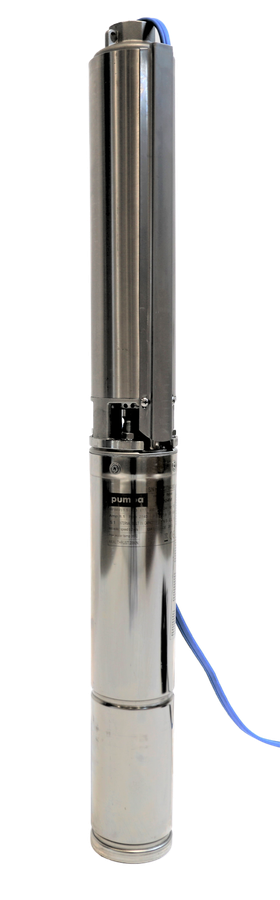

PUMPA inox line STP-1010 4" 0,55kW 230V 2-wire motor, submersible pump, cable 25m

Pump with motor and cable of the specified length, the 230V version is started directly in the motor. See more

Technical Specifications

Maximum flow [l/min]
50
Maximum head [m]
67
Input voltage [V]
230
Power output - P2 [kW]
0.55

Show all Tech Specs

on demand check availability

519.18 € VAT included

On demand

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Submersible borehole pumps
Product No.:
ZB00060215
Sale group:
CEST
EAN:
8596455017776

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA inox line STP-1010 4" 0,55kW 230V 2-wire motor, submersible pump, cable 25m

Product No.: ZB00060215 Sale group: CEST EAN: 8596455017776

on demand
check availability
Product availability
  • central warehouse 0 pcs

519.18 €

Check availability

Maximum flow [l/min]
50
Maximum head [m]
67
Input voltage [V]
230
Power output - P2 [kW]
0.55
Rated flow [l/m]
35
Rated head [m]
49
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
200
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
5
Maximum liquid temperature [°C]
35
Cable length [m]
25
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
98
Impeller material
noryl
Construction
centrifugal
You are viewing this variant

PUMPA inox line STP-1014 4" 0,75kW 230V 2-wire motor, submersible pump, cable 40m

Product No.: ZB00060219 Sale group: CEST EAN: 8596455017813

on demand
check availability
Product availability
  • central warehouse 0 pcs

577.02 €

Check availability

Maximum flow [l/min]
50
Maximum head [m]
92
Input voltage [V]
230
Power output - P2 [kW]
0.75
Rated flow [l/m]
35
Rated head [m]
67
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
200
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
6.20
Maximum liquid temperature [°C]
35
Cable length [m]
35
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
98
Impeller material
noryl
Construction
centrifugal
this variant suits your choice

Product description

Application

  • Drinking water supply for residential buildings from deep drilled wells
  • Utility and industrial water supply
  • Irrigation and other agricultural applications
  • Fire protection systems
  • Pressure amplification in high-rise buildings
  • Other applications

Characteristics

  • Stainless steel construction developed and manufactured to provide many years of fault-free operation
  • All metal parts are made of grade 304 stainless steel, except the shaft made of grade 431 stainless steel
  • Heavy-duty stainless steel discharge head with built-in check valve for long life and easy installation
  • Engine mounting specifications according to NEMA standard
  • High quality shaft bearings ensuring low friction and high wear resistance
  • Floating impellers are made with the addition of NorylR material for perfect sand processing.
  • Stainless steel strainer to prevent the ingress of sand and other impurities

Instructions

Technical Specifications

Maximum flow [l/min]
50
Maximum head [m]
67
Input voltage [V]
230
Power output - P2 [kW]
0.55
Rated flow [l/m]
35
Rated head [m]
49
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
200
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
5
Maximum liquid temperature [°C]
35
Cable length [m]
25
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
98
Impeller material
noryl
Construction
centrifugal
