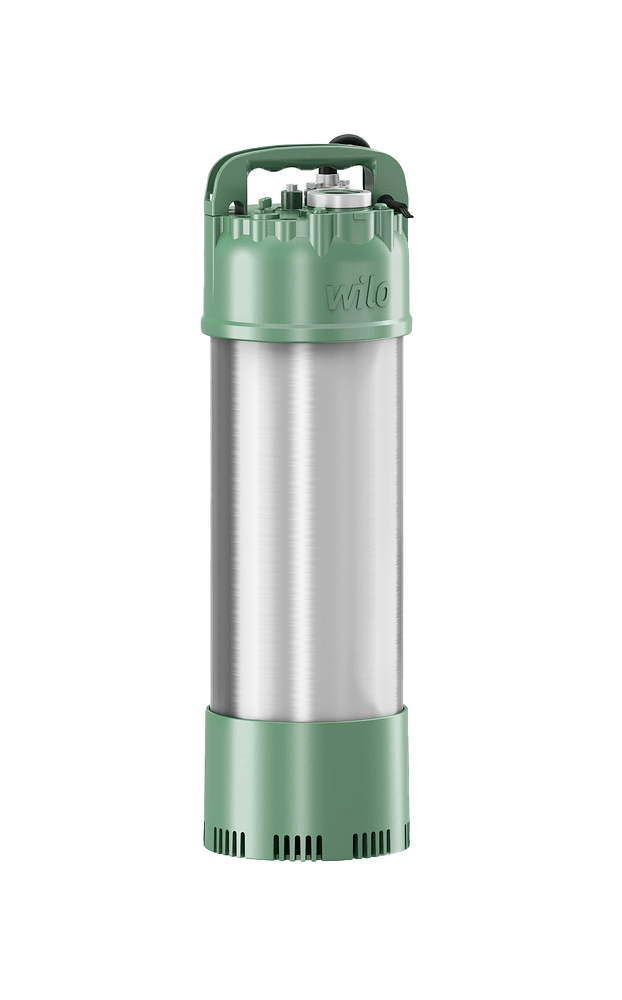

WILO Extract FIRST 303 EM/A submersible pump

Submersible multistage pump with integrated control unit. With the basic version, no additional accessories are needed except for the tap at the end of the hose/pipe. Suitable for private utility and rainwater supply, especially for toilet flushing and irrigation. Ideal for installation in shallow wells, cisterns and reservoirs. See more

Technical Specifications

Maximum flow [l/min]
110
Maximum head [m]
37.10
Input voltage [V]
230
Power output - P2 [kW]
0.75

Show all Tech Specs

in stock 1 pcs

Goods cannot be purchased online. These are either oversized goods with an individual price of transport or an assortment that can only be purchased on demand. If you are interested in the goods, contact us by email [email protected]

421.07 € VAT included

Not sellable online

Delivery accross EU within 3-7 business days %

Brand:
WILO
Category:
Wastewater pumps
Product No.:
ZB00069576
Sale group:
CEW05
EAN:
4062679227412
Manuf. No.:
6093855

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Delivery port ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

WILO Extract FIRST SE 303 EM/A submersible pump

Product No.: ZB00069574 Sale group: CEW05 EAN: 4062679227436 Manuf. No.: 6093857

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

435.59 €

Maximum flow [l/min]
110
Maximum head [m]
37.10
Input voltage [V]
230
Power output - P2 [kW]
0.75
Delivery port ["]
1
Maximum immersion depth [m]
5
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
4.90
Maximum liquid temperature [°C]
40
Cable length [m]
10
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
submersible

WILO Extract FIRST SE 304 EM/A submersible pump

Product No.: ZB00069575 Sale group: CEW05 EAN: 4062679227443 Manuf. No.: 6093858

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

471.89 €

Maximum flow [l/min]
111
Maximum head [m]
47,70
Input voltage [V]
230
Power output - P2 [kW]
1
Delivery port ["]
1
Maximum immersion depth [m]
5
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
6,40
Maximum liquid temperature [°C]
40
Cable length [m]
10
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
submersible

WILO Extract FIRST 303 EM/A submersible pump

Product No.: ZB00069576 Sale group: CEW05 EAN: 4062679227412 Manuf. No.: 6093855

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

421.07 €

Not sellable online

Maximum flow [l/min]
110
Maximum head [m]
37.10
Input voltage [V]
230
Power output - P2 [kW]
0.75
Delivery port ["]
1
Maximum immersion depth [m]
5
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
4.90
Maximum liquid temperature [°C]
40
Cable length [m]
10
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
submersible
You are viewing this variant

WILO Extract FIRST 304 EM/A submersible pump

Product No.: ZB00069577 Sale group: CEW05 EAN: 4062679227429 Manuf. No.: 6093856

on demand
check availability
Product availability
  • central warehouse 0 pcs

457.37 €

Check availability

Maximum flow [l/min]
111
Maximum head [m]
47.70
Input voltage [V]
230
Power output - P2 [kW]
1
Delivery port ["]
1
Maximum immersion depth [m]
5
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
6.40
Maximum liquid temperature [°C]
40
Cable length [m]
10
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
submersible

Product description

Submersible multistage pump with integrated control unit. With the basic version, no additional accessories are needed except for the tap at the end of the hose/pipe. Suitable for private utility and rainwater supply, especially for toilet flushing and irrigation. Ideal for installation in shallow wells, cisterns and reservoirs.

Basic properties

  • Pump body and impellers made of composite plastic
  • Max. dive 5 m
  • Max. number of switches 20 times per hour
  • Max. water temperature 40 °C

It is integrated in the pump

  • Switching unit with factory-set pressure
  • Protection against dry running
  • Thermal and current motor protection
  • A small expansion tank protecting against pressure shocks and a dripping faucet
  • Check valve
  • Valve for self-bleeding of hydraulics

SE version

The SE version has a side connection for external suction. The most common way of use and installation is to pump rainwater from a storage tank for toilet flushing and garden irrigation. The pump is installed at the bottom and sucks in the cleanest water from the tank through the floating suction filter, because most of the dirt is settled at the bottom of the tank or floats on the surface. It can also be installed next to the tank by connecting at its bottom.

Instructions

Technical Specifications

Maximum flow [l/min]
110
Maximum head [m]
37.10
Input voltage [V]
230
Power output - P2 [kW]
0.75
Delivery port ["]
1
Maximum immersion depth [m]
5
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
4.90
Maximum liquid temperature [°C]
40
Cable length [m]
10
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
submersible
