WILO VARIOS PICO-STG

Your advantages

• The most compatible replacement solution for all applications, including solar and geothermal, thanks to compact design, innovative control modes (such as iPWM) and the Sync assistant

• Maximum operating convenience thanks to its LED display and Green Button Technology featuring a button for control mode and a button for setting the pump

• Easy installation owing to a compact design, adjustable Electrical connections and maintenance functions such as venting

• Maximum operational reliability based on proven technology

The most versatile replacement pump of all time.

The Wilo-Varios PICO-STG is the universal replacement solution in the heating, air conditioning and cooling sector for residential dwellings, as well as for solar and geothermal installations. It offers either standard mode or external control mode, and the settings of the pump it replaces can be easily imported using the Sync assistant. Its compact construction and the adoption of characteristic curves from the old pump with the new synchronisation function make installation and commissioning particularly easy. And with the Green Button Technology the operability is highly convenient.

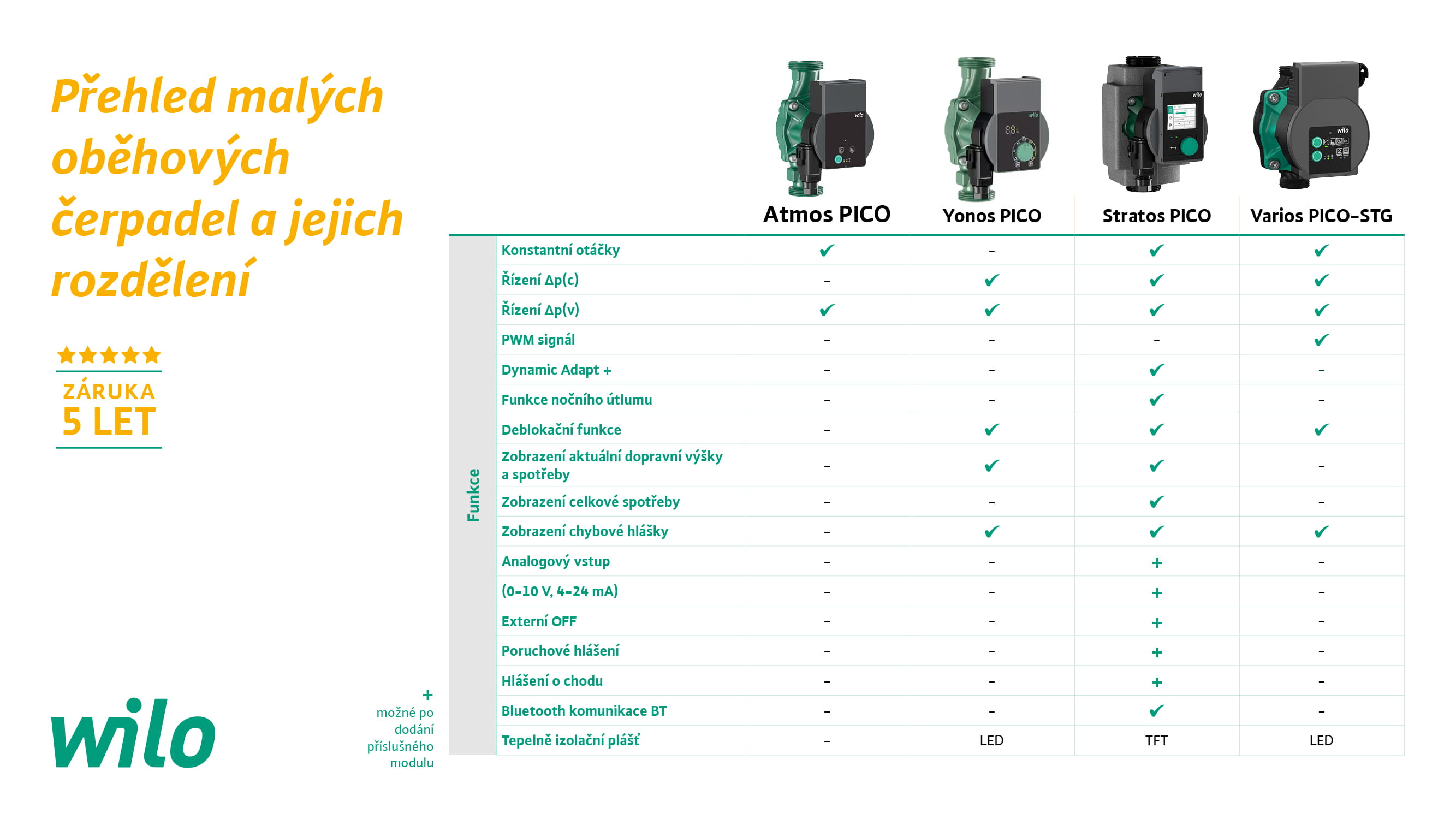

Construction

Glandless circulator with screwed connection, blocking-current proof EC motor and integrated electronic power control.

Application

All hot-water heating systems, air-conditioning applications, industrial circulation systems, primary circuits of solar and geothermal systems.

Equipment/function

Operating modes

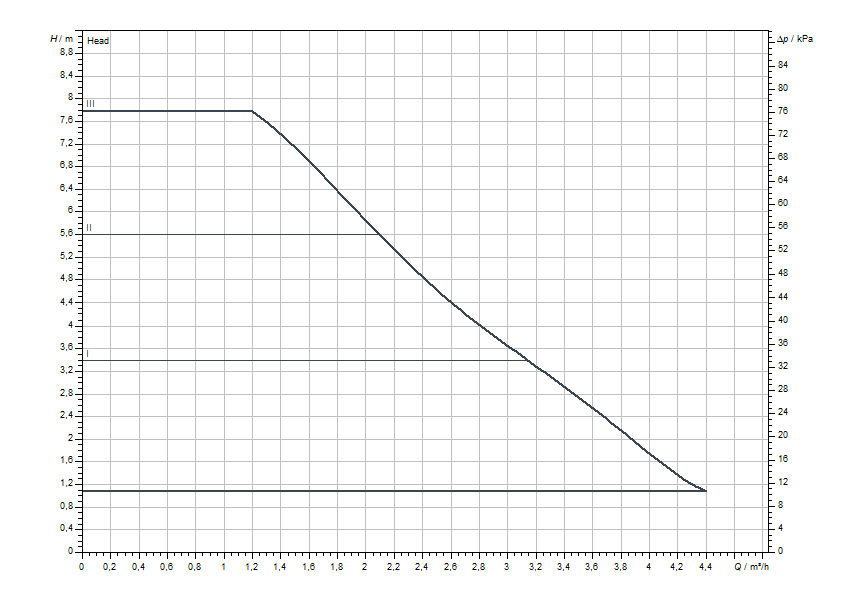

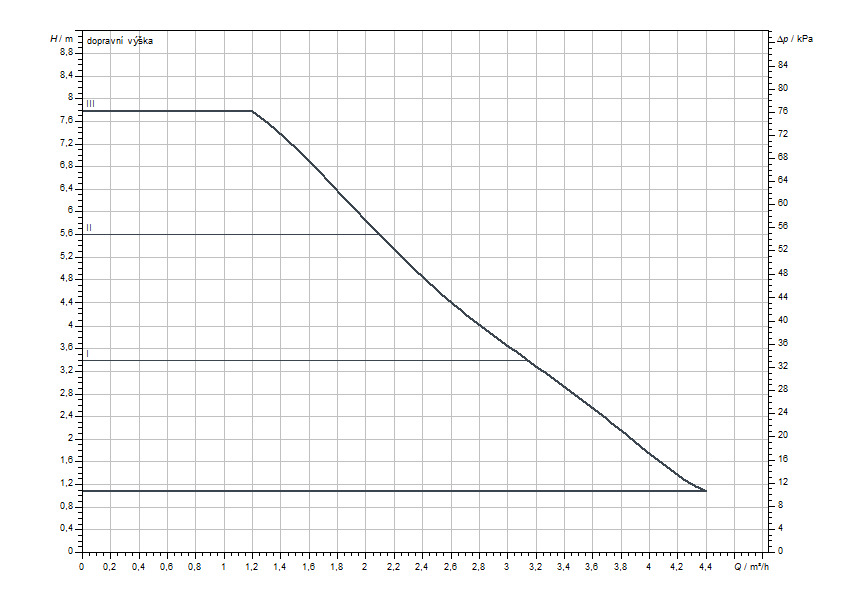

• Constant differential pressure (3 pre-defined characteristic curves)

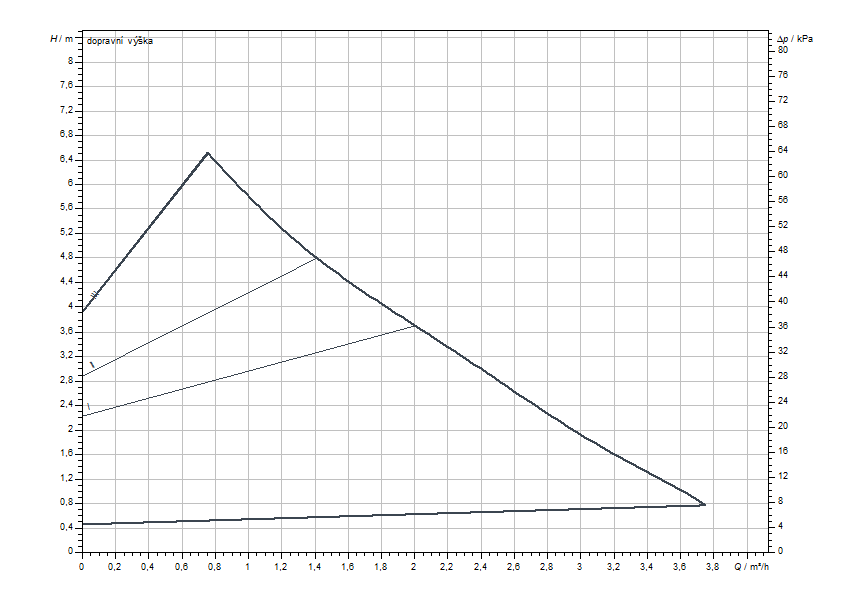

• Variable differential pressure (3 pre-defined characteristic curves)

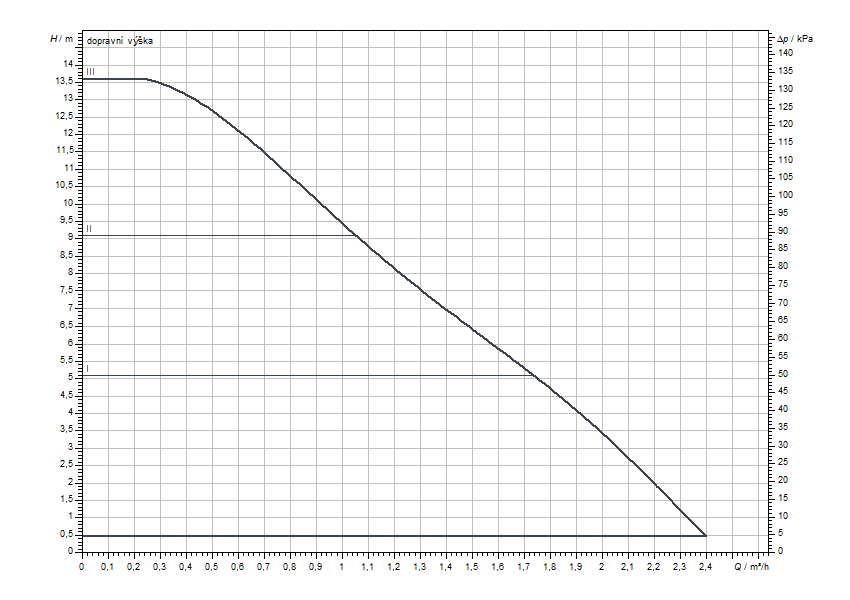

• Constant speed (3 speed stages)

• External control by iPWM signal

  • iPWM GT (heating/geothermal energy, not for Varios PICO-STG .../1-13)

  • iPWM ST (Solar)

Manual functions

• Setting the operating mode in accordance with the application

• Setting of pump output (curve)

• Setting the constant speed

• Activation of sync function and LED coding

• Pump venting function

• Manual restart

Automatic functions

• Automatic restart

Signal and display functions

• Display of selected control mode

• Display of selected stage of control mode or iPWM type

• Display of activated sync function and LED coding

• Status display of the manual restart or pump venting function

• Operation and fault display

Equipment

• Cataphoretically-coated pump housing

• Wrench attachment point on pump body

• Electrical connection cable with 3-pole pump plug and Wilo-Connector

• iPWM connection

• Pump venting function

• Manual restart

• Blocking-current proof motor

• Particle filter

Scope of delivery

• Pump

• Cable with 3-pole pump plug and Wilo-Connector connection

• Wilo-Connector

• Gaskets

• Installation and operating instructions

Type key

Materials

• Pump housing: Grey cast iron (EN-GJL-200)

• Impeller: Plastic (PP - 40% GF)

• Pump shaft: Stainless steel

• Bearing: carbon, metal impregnated
