Wilo DrainLift MINI5

Comfortable pumping station with alarm contact for draining wastewater from one room - from toilet, shower, dishwasher and washing machine or condensate from condensing boilers below the backflow level.
The Wilo-DrainLift MINI5 is a practical pumping station that reliably discharges domestic wastewater. Its modern and aesthetic design and small dimensions make it ideal when natural drainage cannot be provided. The pumping station can be individually customised, as you can choose the discharge connection (horizontal or vertical DN 32/40), the different inflows DN 40/50 and side or central toilet connections. There is no need for complicated additional piping for the pressure outlet, so installation is extremely convenient, especially during modernisation and rehabilitation. To reduce the risk of clogging and to ensure high operational reliability, the pumping station includes a wastewater pump with rotating blade.

Your advantages

• Ready-to-connect pumping station in a compact design - suitable for installation on the front wall
• Unobtrusive integration into modern living environments thanks to the aesthetic design of the housing
• With connection for WC: High operational reliability thanks to non-clogging pump with rotating cutting blade
• Various connection options for greater installation flexibility, especially when replacing older models with existing pipework
• Integrated level measurement with suction height
• Silent Mode to reduce noise emissions in challenging piping conditions
• Integrated potential-free contact for connecting an external alarm signal or Smart Home device as a fault level alarm
• Innovative design for easy and hygienic access to the pump and level probe
• Corrosion-resistant plastic for transporting condensate from boilers and water softeners
• Very quiet operation for discreet drainage

Design type

Compact pumping station ready for connection with alarm contact for drainage of basins, showers, baths, toilets and condensing boilers.

Application

For installation inside rooms or installation on the front wall. For connection of the following drainage components:

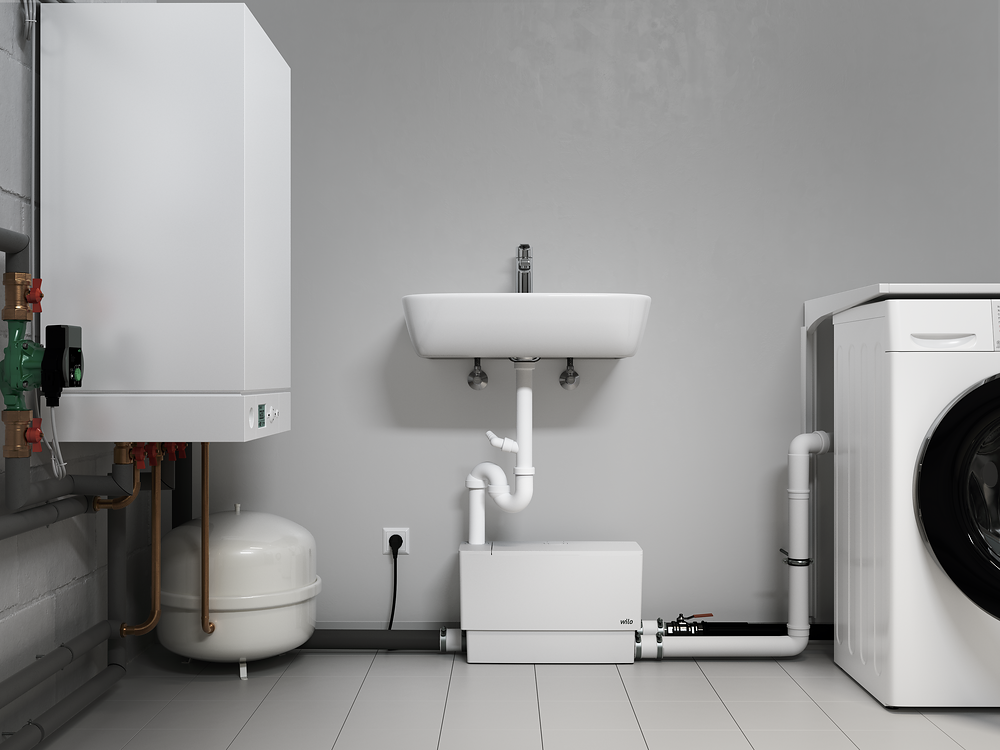

DrainLift MINI5-XS/C

• Sink
• Shower
• Bathtub
• Dishwasher
• Washing Machines
• Condensing boiler

DrainLift MINI5-XS/WC

• Toilet
• Washbasin
• Shower
• Liquids

DrainLift MINI5-XS/C

For collecting and transporting water in domestic areas:

• Fecal-free wastewater
• Condensate (from pH value 2.5) - not in pure form, only mixed with wastewater from another influent.

Wastewater conveyance in accordance with 12050
The wastewater transfer equipment complies with the requirements of EN 12050-2.

DrainLift MINI5-XS/WC

For collecting and transporting water in domestic areas:

• Wastewater with faecal matter

Wastewater transport in accordance with 12050 The wastewater pumping device meets the requirements of EN 12050-3.

Equipment/functions

Ready to connect
Level sensing with level sensor
Vertical discharge connection that can be converted to a horizontal discharge connection.
Max. three inflows
"Toilet" version with toilet connection
Ventilation with activated carbon filter
Operation mode "Silent mode" (only DrainLift MINI5-XS/C)
Suction height
Fault signal (buzzer) with potential-free contact

Type key

Example: Wilo-DrainLift MINI5-XS/WC-EF
MINI5 Small comfort pumping unit
XS Design size
WC Connection design
C = without toilet connection
WC = with toilet connection
EF Design of mains plug
... -EF = CEE 7/7 (Schuko plug) for socket types E and F
I = plug type I for socket type I

Technical data

• Mains connection: 1~230 V, 50 Hz
• Operating mode: S3 15%
• Pumped medium temperature: 3 ... 50 °C (37 ... 122 °F), max. 75 °C (167 °F) for 30 min
• Max. ambient temperature: 3 ... 40 °C (37 ... 104 °F)
• Protection class: IP44

Design

Wilo-DrainLift MINI5-XS/C

Compact, submersible pump station, ready for connection. The level measurement is carried out via a level sensor. The drain is integrated in the inner casing and equipped with an activated carbon filter. In addition, the pumping station is equipped with a buzzer and a voltage-free alarm contact (max. switching power: 42 V=, 500 mA, contact type: NC contact). An acoustic alarm is activated by the buzzer when the tank level is high. A fault alarm can be further connected via this potential-free contact. The tank lid completely closes the device.Up to four connections are available:

• 1 × 40 mm (DN 40) inlet, without non-return valve, upwards, factory closed.
• 2× 40/50 mm (DN 40/50) inlet, with non-return valve, horizontally upwards to the left and right, factory open.
• 1× discharge connection 32/40 mm (DN 32/40), with non-return valve, upwards, factory open.

- If required, the discharge connection can be made horizontally to the right. The corresponding opening is closed at the factory.

Wilo-DrainLift MINI5-XS/WC

Compact, fully floodable pumping station with submersible pump, ready for connection. The submersible pump is equipped with a rotating impeller. The blade is guaranteed to dilute faecal matter in the wastewater. The level is measured by means of a level sensor. The venting is integrated in the inner housing and equipped with an activated carbon filter. In addition, the pumping station is equipped with a buzzer and a voltage-free alarm contact (max. switching power: 42 V=, 500 mA, contact type: NC contact). An acoustic alarm is activated by the buzzer when the tank level is high. A fault alarm can be further connected via this potential-free contact. The tank lid completely closes the device.
Up to five connections are available:

• 1 × 40 mm (DN 40) inlet, without non-return valve, upwards, factory closed.
• 2 × 40/50 mm (DN 40/50) inlet, with non-return valve, horizontally facing left and right, factory open.
• 1× toilet connection 110 mm (DN 110), forward facing, factory open. - If necessary, the toilet connection can be made horizontally to the left. The corresponding opening is closed at the factory.
• 1× discharge connection 32/40 mm (DN 32/40), with non-return valve, upwards, open at the factory.
  - If required, the discharge connection can be made horizontally to the right. The corresponding opening is closed at the factory.

Scope of delivery
Discharge connection

• 1× sealing sleeve for HT pipe DN 32/40 (32/40 mm)
• 2× Hose clamp 32-50 mm

Toilet connection (WC version only)

• 1× sealing sleeve for HT pipe DN 110 (110 mm)
• 1× clamping ring
• 1× hose clamp 110-130 mm

Inlet connection

• 2× inlet connection DN 50 (50 mm)
• 2× sealing sleeve for HT pipe DN 40/50 (40/50 mm)
• 2x check valve
• 2× pipe clamp 50-70 mm
• 2× hose clamp 32-50 mm
• 2× sealing plug
• 6× O-ring

General

• Anchoring (buoyancy protection): 2× fixing angles with screws and dowels
• Emergency drain kit (drain hose, hose clamp, sealing plug)
• Set for horizontal discharge connection
• Installation and operating instructions
